Test Lane
Test Lane: Suspension, Brake, Side Slip Test (light)
| Specifications | |
|---|---|
|
ITEM |
PARAMETER |
|
Max. Vehicle Weight (kg) |
3500 |
|
Max. Measurement Axle Load (kg) |
3000 |
|
Power Supply |
3 phase 380-420V, 50Hz |
|
Application Temperature |
0-40 ℃ |
|
Application Humidity |
≤90% |
|

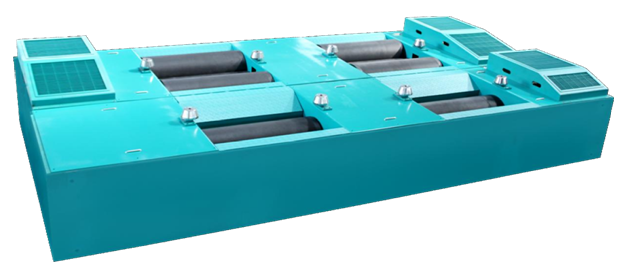

Brake Tester |
KZD-3 |
|
Measurement Range (N) |
0-10000 |
|
Roller Diameter (mm) |
Φ200 |
|
Adhesion Coefficient Of Roller |
0.9 dry, 0.7 wet |
|
Brake Roller Length (mm) |
700 |
|
Brake Testing Speed (km/h) |
2.5 or 5.0 |
|
Brake Roller Axle Tread (mm) |
381 |
|
Wheel Diameter (mm) |
500-800 |
|
Motor Power (kW) |
2.2x2 or 4.0x2 |
|
Equipment Dimensions (mm) |
2390x725x275 |
|
Equipment Weight (kg) |
520 |
|

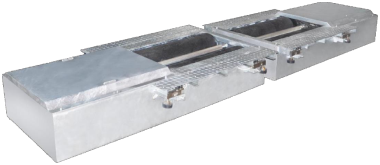

Suspension tester |
KXJ-3 |
|
Wheel Weighing Rang (kg) |
0-2000 |
|
Suspension Vibrating Plate Dimensions (mm) |
700x300 |
|
Suspension Oscillation (mm) |
6 |
|
Vibration Frequency (Hz) |
15 or 24 |
|
Suspension Motor Power (kW) |
2.2x2 or 4.0x2 |
|
Equipment Dimensions (mm) |
2390x450x275 |
|
Equipment Weight (kg) |
530 |
|

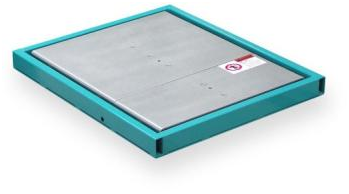

Sideslip tester |
KCH-3 |
|
Sideslip Measurement Range (m/km) |
±15 |
|
Sideslip Plate Dimensions (mm) |
500x600 |
|
Equipment Dimensions (mm) |
830x700x65 |
|
Equipment Weight (kg) |
85 |
|
Power Supply |
1 phase 220V, 50Hz |
|

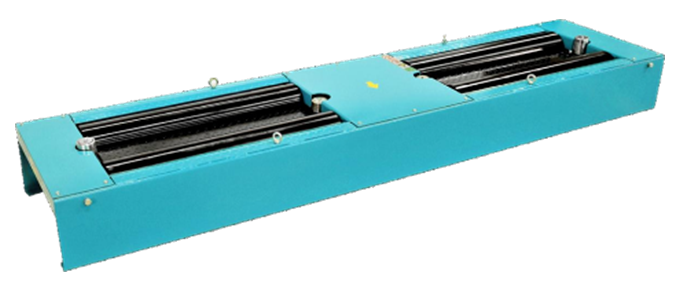

Speedometer(option) |
KCS-3 |
|
Speedometer Roller Diameter (mm) |
Φ190x700 |
|
Speedo test rang (km/h) |
20-120 |
|
Equipment Dimension (mm) |
2390x720x325 |
|
Equipment Weight (kg) |
580 |
Sideslip Tester (Heavy)
|
Max. axle load |
18000 kg |
|
Test range |
±15.0 m/km |
|
Mechanical structure |
Single Plate(with releasing board) |
|
(L×W) Test board dimension |
1000×800 mm |
|
(L×W) Releasing board dimension |
800×315 mm |
|
Gross weight |
360 kg |

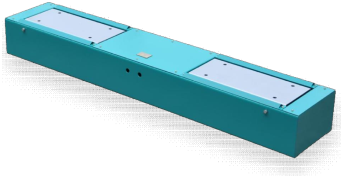

Suspension Tester (Heavy)
|
Max drive-over axle load |
10000 kg |
|
Max. test wheel load |
1500 kg |
|
Vibration amplitude |
6 mm |
|
Vibration frequency |
＞15 Hz |
|
Vehicle diameter range |
500～800 mm |
|
Min. inner distance of co-axial wheels |
850 mm |
|
Max. out distance of co-axial wheels |
2000 mm |
|
Motor power |
2.2 kW * 2 |
|
Gross weight |
410 kg |
|
Power supply |
AC 3-phase 380V/50Hz，GND |
Roller Brake Tester with Axle Load (Heavy)
|
Max. axle load |
13000 kg |
|
Max test axle load |
0～10000 kg |
|
Test Range |
0～30000 N ×2 |
|
Roller diameter |
Ф 245 mm |
|
Roller length |
1100 mm |
|
Roller height gap between front & back roller |
30 mm |
|
Adhesion coefficient(dry/wet) |
> 0.80/0.60 |
|
Testing speed |
2.5 km/h |
|
Vehicle wheel diameter range |
600～1100 mm |
|
Min. inner distance of co-axial wheels |
750 mm |
|
Max. out distance of co-axial wheels |
2850 mm |
|
Motor power |
11.0 kW * 2 |
|
Gross weight |
1800 kg |
|
Motor power supply |
AC 3-phase 380V/50Hz，GND |
|
Working air pressure |
0.7～0.8 MPa |
Speedometer Tester (Heavy)
|
Max. axle load |
10000 kg |
|
Max. testing speed |
120 km/h |
|
The indication value corresponds to the drum speed |
1 km/h ≈ 27.927 r/min |
|
Roller diameter |
Ф 190 mm |
|
Roller length |
1100 mm |
|
Central distance of two rollers |
405 mm |
|
Vehicle wheel diameter range |
500～1100 mm |
|
Min. inner distance of co-axial wheels |
750 mm |
|
Max.out distance of co-axial wheels |
2850 mm |
|
Gross Weight of the bench |
900 kg |
|
Power supply |
AC single phase 220V 50Hz，GND |
|
Working air pressure |
0.7～0.8 MPa |
Chassis Dynamometer (Heavy)
|
Max. axle load |
10000 kg |
|
Max. testing speed |
120 km/h |
|
Max absorbing power |
350 kW |
|
Roller diameter |
Ф 373 mm |
|
Roller length |
1050 mm |
|
Roller center distance |
714 mm |
|
Vehicle wheel diameter range |
600～1100 mm |
|
Min. inner distance of co-axial wheels |
900 mm |
|
Max. out distance of co-axial wheels |
2900 mm |
|
Inertia |
907 kg±18 kg |
|
Speed indication error: |
≤±0.2 km/h |
|
Torque indication error |
≤±1% |
|
Gross weight |
2820 kg |
|
Control cabinet power |
AC single phase 220V/50Hz，GND |
|
Working air pressure |
0.7～0.8 MPa |
