Scanner Universal

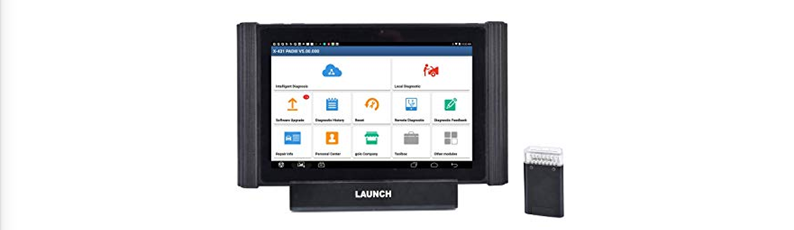

X-431 PAD III

is a brand-new high-end car fault diagnostic device developed by Launch based on Android system. In addition to inheriting many advantages such as wide coverage of special functions and car models, powerful and a large number of diagnostic functions, and accurate test data, X-431 PAD III also firstly introduces intelligent diagnosis technology, which makes maintenance more intelligent and efficient.

1. Cloud diagnosis technology: Identify the car model by photographing the license plate or VIN scanning, and check historical maintenance and diagnostic records online.

Special functions: Supports matching, coding, programming, service lamp resetting, throttle matching, steering angle resetting, brake pad resetting.

Wide car model coverage: Support most of the car models from Asia, Europe and America, such as Maserati, Ferrari, Rolls-Royce, Bentley, Benz, BMW, and Audi

Support the modules "Sensor and multimeter","Battery detection", "Oscilloscope", and "Endoscope"

Remote diagnosis between workshop

Specifications

Platform: Android 6.0

Working Temperature: -10 ℃ to 50℃

Display: 10.1 inch, 1920*1200

Power Consumption: ≤2W

CPU: 2.0 GHz eight cores

Test Voltage: DC12V

RAM: 2GB

Bluetooth: Within 100 meters

Capacity: 64GB

Diagnostic Method: Bluetooth +Wired

Camera: Front 2mp/Rear 8mp

Size: 69×40×18mm

Battery: 15000mAh

Size: 323x189x34mm

Communication mode: Wi-Fi

Scanner X 431Pad II

Product Features Functions:

• Extensive coverage for more than 50 Domestic, Asian and European vehicle makes.
• Deep vehicle system coverage for All makes ALL Models & ALL available modules.
• Sensor Initializations, ECU Adoptions Coding & Module Set up functionality.
• Immobilizers, Key Coding functionality & Component activation Testing.
• Complete function Capability including live data, module coding and many others.

• Operating system: Android 5.1
• CPU: 2.0GHz
• Display: 10.1IPS, 1920*1200
• RAM: 2 GB DDR 3 SDRAM
• ROM: 64 GB EMMC
• Battery: 12000 mAh /3.7V
• Ports: Serial, COM and Power.
• Connectivity: WiFi, Bluetooth.
• Storage Temp: -20℃-70℃
• Working Temp: 0℃-45℃
• Humidity: <80%

Scanner: X431 Pro 3

Product Features Functions:

• Extensive Coverage for more than 50 Domestic, Asian and European vehicle makes.
• Deep vehicle system coverage for ALL makes ALL Models & ALL available modules.
• Sensor Initializations, ECU Adaptations, Coding & Module Set up functionality.
• Immobilizers, Key Coding functionality & Component Activation Testing.
• Complete Function Capability including live data, module coding and many others.

Specifications:

• CPU: 1.3GHz Quad core
• RAM: 1G RAM
• Capacity: 16GB+32 TF card
• Battery: 7000mAh
• Display: 10.1'' IPS/1280*800
• Camera: Front 2mp/Rear 5mp
• Support Bluetooth, WIFI
