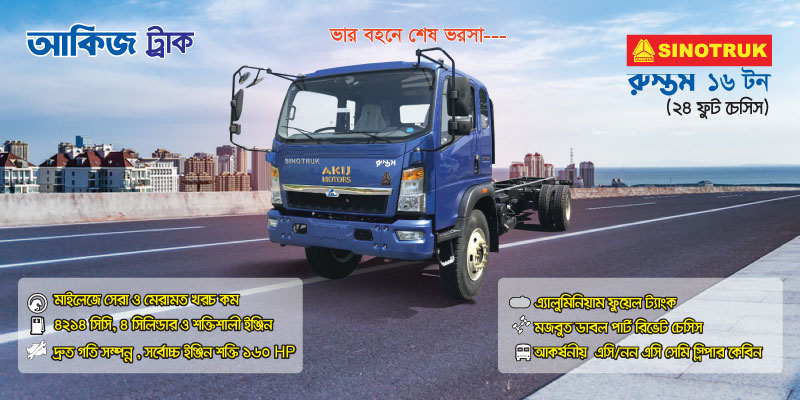

Rustom Plus (4x2) 24 Feet
| Specifications | ||
|---|---|---|
| Model | Rustam Plus 24 feet chassis |
|
| Engine |
YuChai YC4E160-33, 4-cylinder in-line, 4-stroke, direct injection diesel engine, water cooling, intercooler, turbocharged |
|
| Power | 119 kW (160 horsepower) @ 2600 RPM | |
| Torque | 520 Nm @ 1300 - 1700 RPM | |
| Piston Displacement | 4257 cc |
|
| Gear | DC6J70TC (6 forward speeds + 1 reverse speed) |
|
| Turning Radius |
10.5 | |
| Clutch | 350 mm: Single dry plate coil spring, hydraulic air-assisted operation |
|
| Steering | Power Steering | |
| Suspension | Leaf spring 9/11+8 |
|
| Maximum Gradeability |
27% | |
| Front Axle | 6 Ton |
|
| Rear Axle |
10 Ton |
|
| Rear Axle Ratio | 6.33 |
|
| Frame |
Double part riveted chassis, 250x80(7+4) (mm) |
|
| Maximum Speed | 95 km/h |
|
| Cabin | 2080 mm, sleeper cabin, integrated front tiltable |
|
| Wheelbase |
5400 mm | |
| Cargo Body Dimension |
24 feet | |
| Overall Dimension |
Length 30 feet x Width 7.78 feet x Height 8.76 feet | |
| Kerb Weight | 5500 kg | |
| Tire | 10:00 R20, (6+1) | |
| Brake System |
Air Brake | |
| Payload | 10500 kg | |
| Vehicle Gross Weight |
16000 kg |
|
| Ground Clearance | 259 mm | |
| Battery | (2 x 12) 24 Volt, 105 Ampere | |
| Wheel Track | Front 1867, Rear 1860 |
|
| Driving | 4 x 2 | |
| Fuel Tank | 150 Liters | |
Terms & Conditions:
- Delivery on both cash and hire purchase.
- For hire purchase, minimum down payment is 30%.
- Registration & Insurance are free of charge.
- Installment period maximum up to 36 months.
- 6 times free services.
- For covered van body making charge is applicable.
*Please be informed "AKIJ Motors" has every right to change the content without any prior notice.
For Price Please Call
+880 1770-794940
