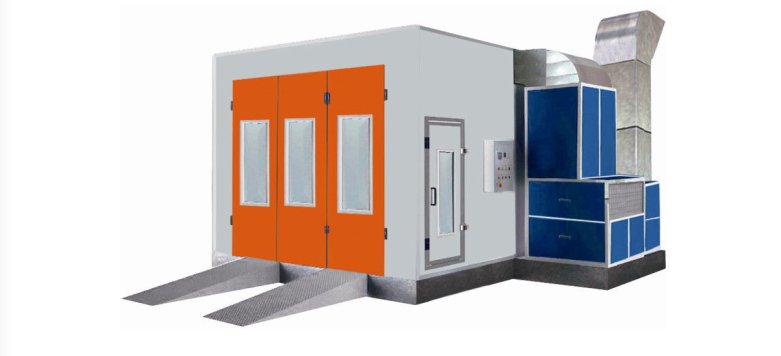

Paint Booth

Specification:

Dimensions (mm)

Inside Dimensions:  7000 x 4000 x 2650mm
Outside Dimensions:  7120 x 5420 x 3350mm
Wall Panels: pre painted steel sheet, double skinned with insulation(EPS or Glass-wool), tongue and groove interlock construction, thickness: 60mm

Doors: 3-fold main doors, 3000(W) x2600(H) mm. One personnel door, 800(W)x2000(H)mm.

Basement and floor: Pit base (type 4) or raised metal-base (300mm high) with 3 rows of gratings and 2 rows of indented plates.

Intake: One backward inclined turbo fan,

Capacity: 20000cmh, motor:5.5kW, direct drive

Extract: One backward inclined turbo fan, capacity: 20000cmh, motor: 5.5kW,direct drive.

By-pass: Pneumatic damper from spraying to baking cycle.

Heating System: Stainless heating exchanger, 60c°-80c° working temperature. Italy Riello One-stage oil burner.

Filter System: 4 sorts of filters: Pre-filter, ceiling filter, floor paint-stop filter, extract paint-stop filter.

Ceiling Filtration Area: 22m2

Lighting: Upper inclined lights, 8 units, 4X36W each

Control System: World famous components, digital temperature readout, spray and bake temperature settings, bake timer, hour meter,
over temperature alarm, indicator lights, emergency stop, photogenic pressure gauge with motorized damper control

Note:

  Type 1: 300mm high raised metal-base with two (2pcs.) ramps outside. (Standard)

  Type 2: 300mm high raised metal-base with ramps inside.

  Type 3: 300mm high raised metal-base, base-down installation, no ramps needed.

  Type 4: pit style installation, no raised metal-base needed.

RG5S oil burner from Riello, Italy
