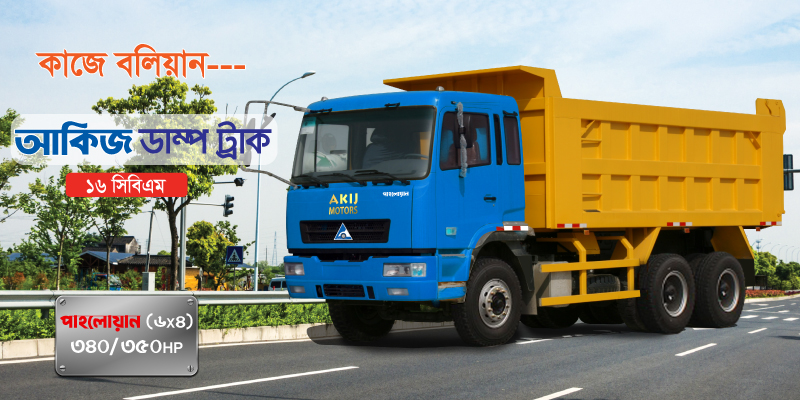

Pahloan 16 CBM
| Specifications | ||
|---|---|---|
| Model | Pahloan | |
| Engine | Weichai WP6.240E32, 6 inline, water-cooled, EGR, air intercooler, turbocharged |
|
| Power | 178 kW (240 horsepower) @ 2300 RPM | |
| Torque | 800 Nm @ 1400 - 1600 RPM |
|
| Piston Displacement | 6750 cc |
|
| Transmission | FAST 8JS10ST (8 forward speeds + 2 reverse speeds) |
|
| Maximum Climbing Gradient | 37% | |
| Clutch | 395 mm, dry type, single plate dry coil spring, diaphragm spring clutch, hydraulic controlled air-powered operation |
|
| Steering | Integrated power steering | |
| Suspension | Leaf spring / bogie type |
|
| Frame | Side rails, punching and riveted construction |
|
| Maximum Load Front Axle | 5760 kg |
|
| Maximum Load Rear Axle | 9180 kg |
|
| Rear Axle Ratio | 5.833 | |
| Wheelbase | 3200+1350 mm |
|
| Maximum Speed | 75 km/h |
|
| Cabin | 44-degree, integrated front tiltable |
|
| Front Wheel Track | 2020 mm |
|
| Rear Wheel Track | 1860 mm |
|
| Overall Dimensions | Length: 7575 mm x Width: 2550 mm x Height: 3630 mm | |
| Curbed Weight | 12500 kg | |
| Tires | 10.00 R20, (10+1) |
|
| Braking System | Dual circuit, air pressure brake |
|
| Payload | 12500 kg | |
| Gross Vehicle Weight | 25000 kg |
|
| Ground Clearance | 255 mm |
|
| Battery | (2 x 12) 24 volts, 120 Amps | |
| Fuel Tank | 400 liters |
|
| Driving | 6 x 4 |
|
| Operational Status | Designed for the weather and road conditions of Bangladesh, capable of carrying stones, sand, soil, etc. |
|
