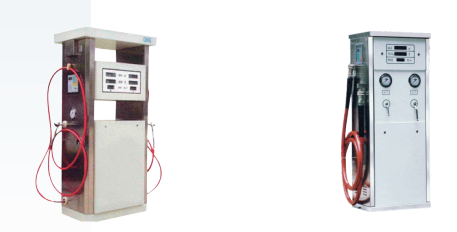

CNG Dispense

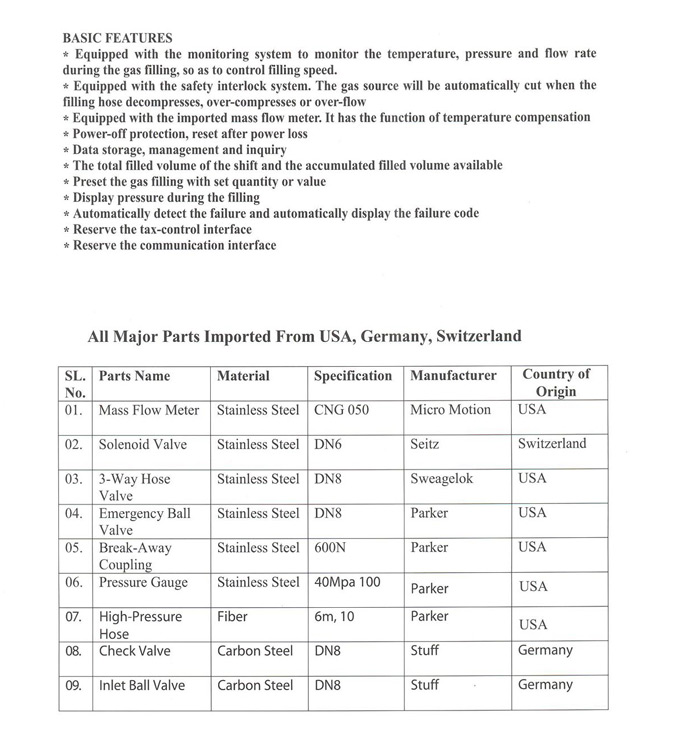

Basic Function
* High Accuracy
* Fast Filling
* Accurate Pressure & Temperature
CNG Dispenser
Technical Specification
✰Three Line Delivery System
✰Micro Motion CNG050 Mass Flow Meter (USA)
✰ Maximum Flow Rate 30 m3/min/Nozzle (Standard Flow)
& 3-40 m3/min/Nozzle (High Flow)
Measurement Accuracy+0.5%
✰ Maximum Working Pressure 250 Bar Inlet
✰ Minimum Working Pressure 200 Bar Outlet
✰Ambient Temperature -30°C~ +50°C
✰Power <200 Watt
✰Environment Humidity 90%
Enricgroup.com
Power Supply 220V±(±15% 50Hz) ± 1 Hz
✰ Distance For Filling 6 Meters
